Water Outlet and Thermostat

zetec - 35

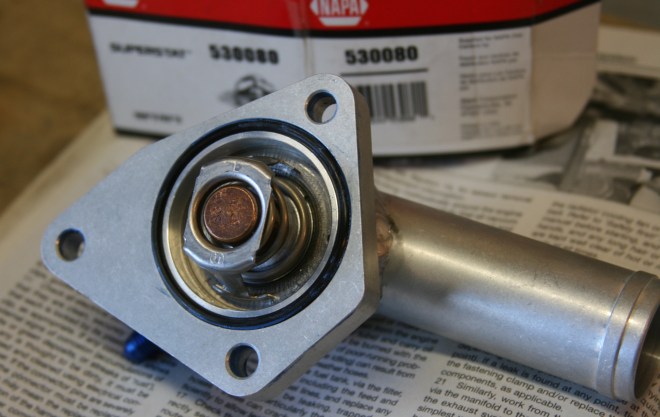

Thermostat in place on new water outlet.

Thermostat is a standard part available everywhere (here Napa part number 530080).

The new Zetec water outlet was a specialty item available from Quicksilver for $180.

Burton Power and Raceline can supply alternative water outlets with alternative routings.


zetec - 36

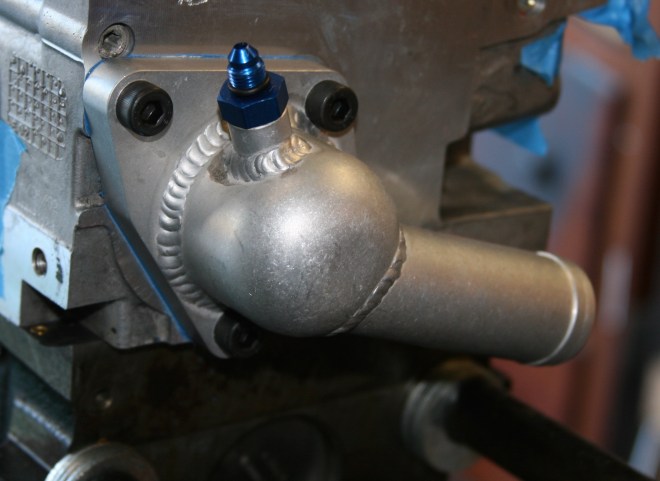

New water outlet bolted into place at rear of cylinder head.

Stock location but new component.

Bolt torque is at 16 ft-lbs.
